A modular flow tank for university

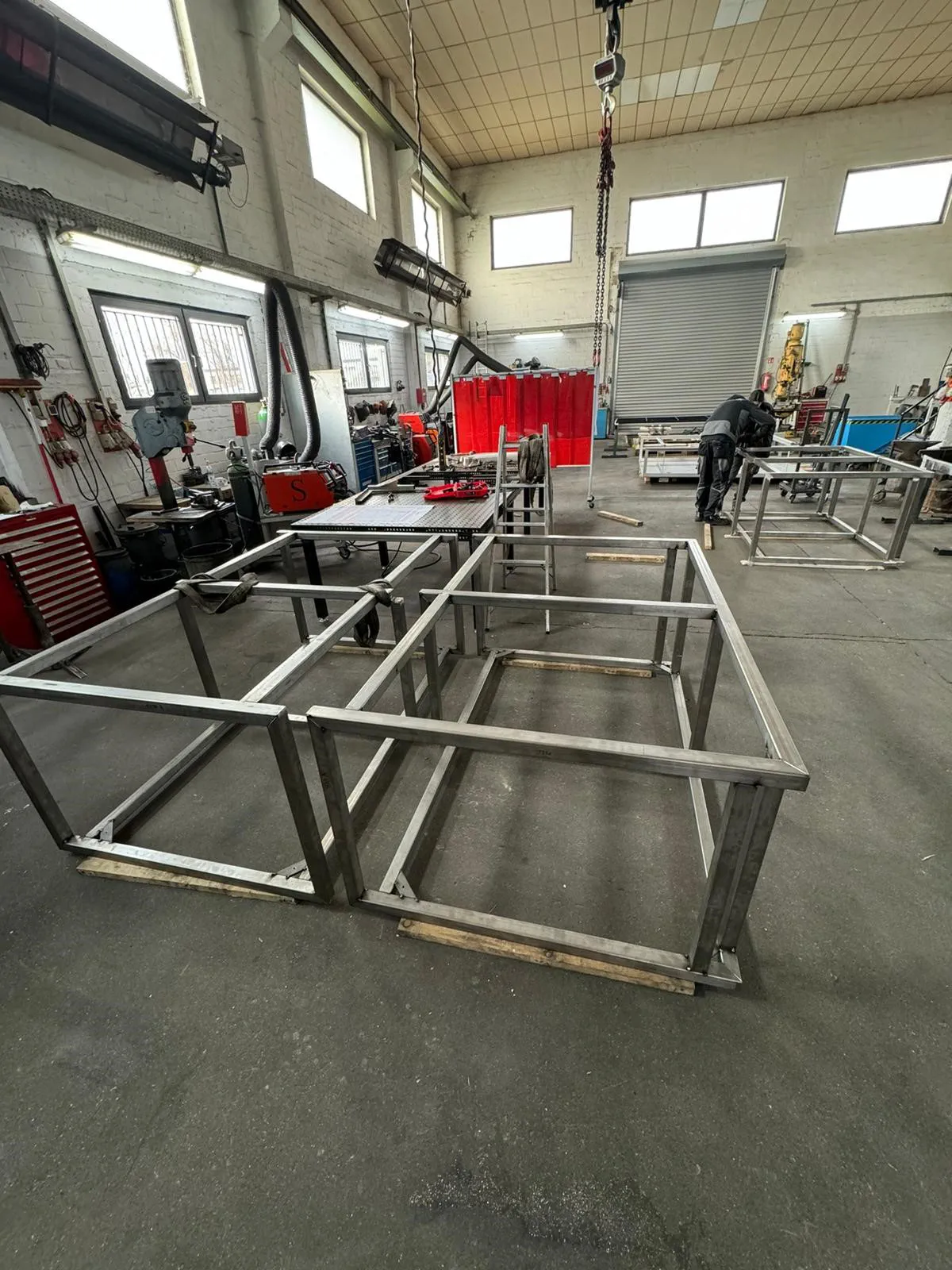

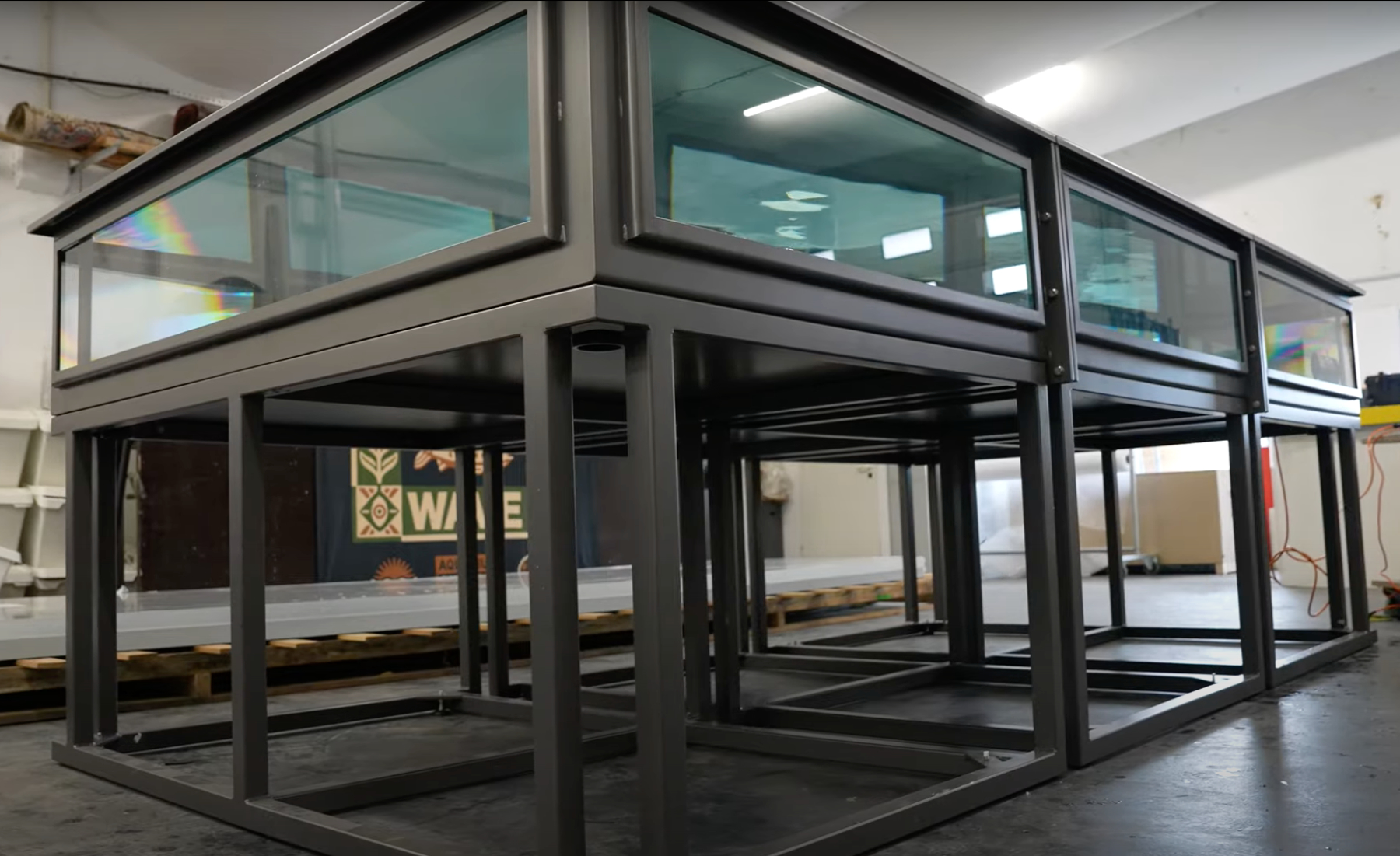

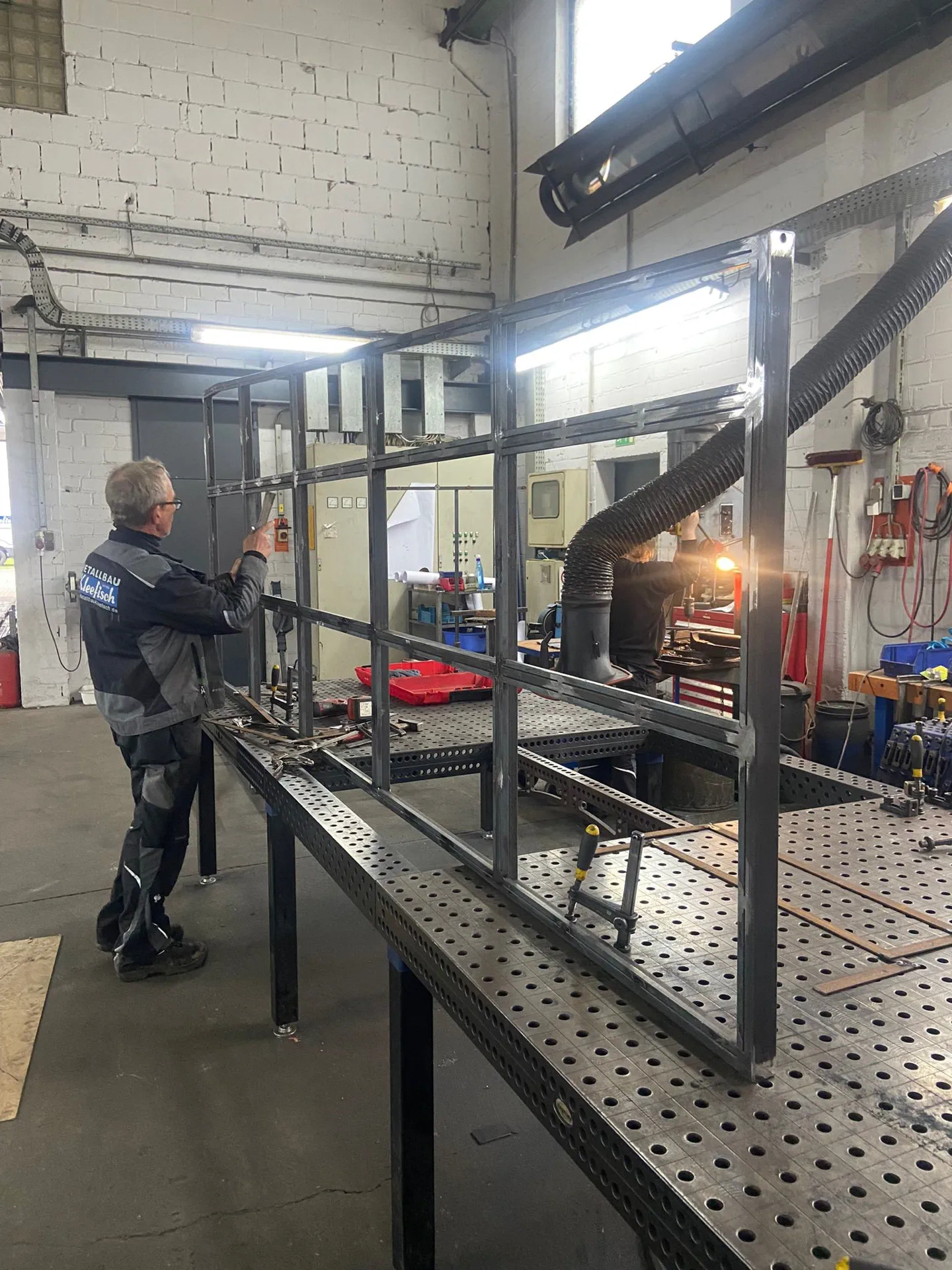

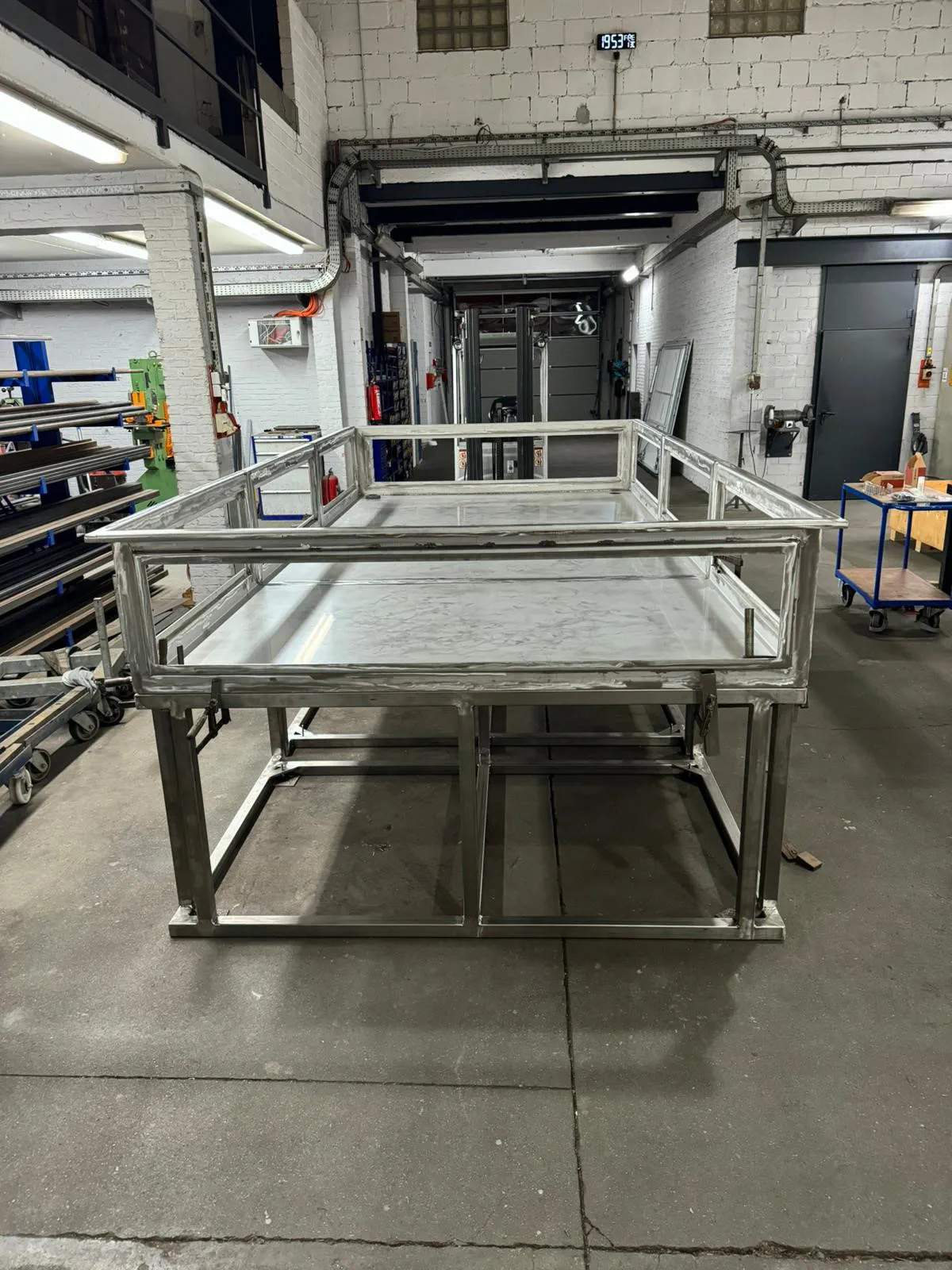

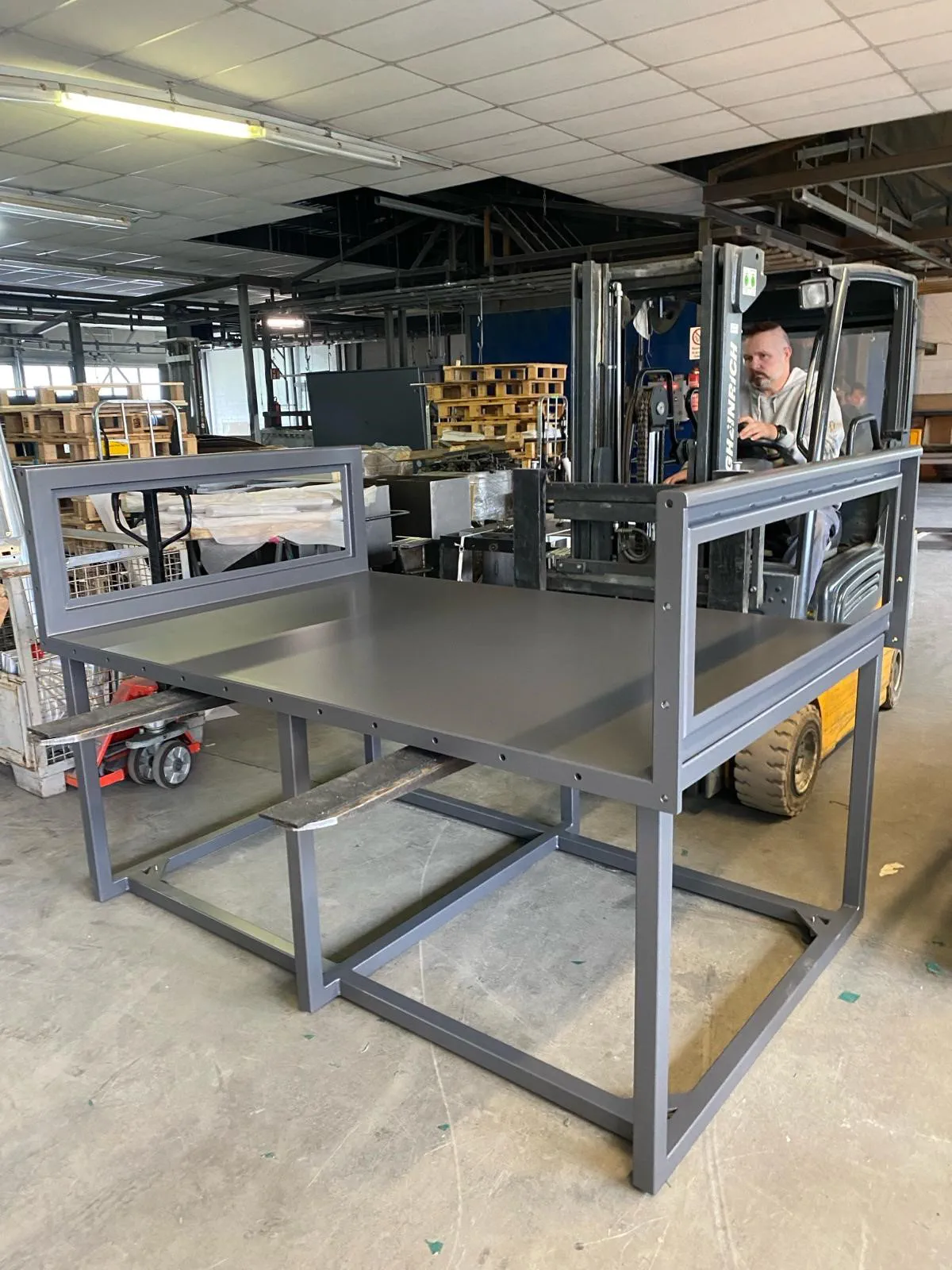

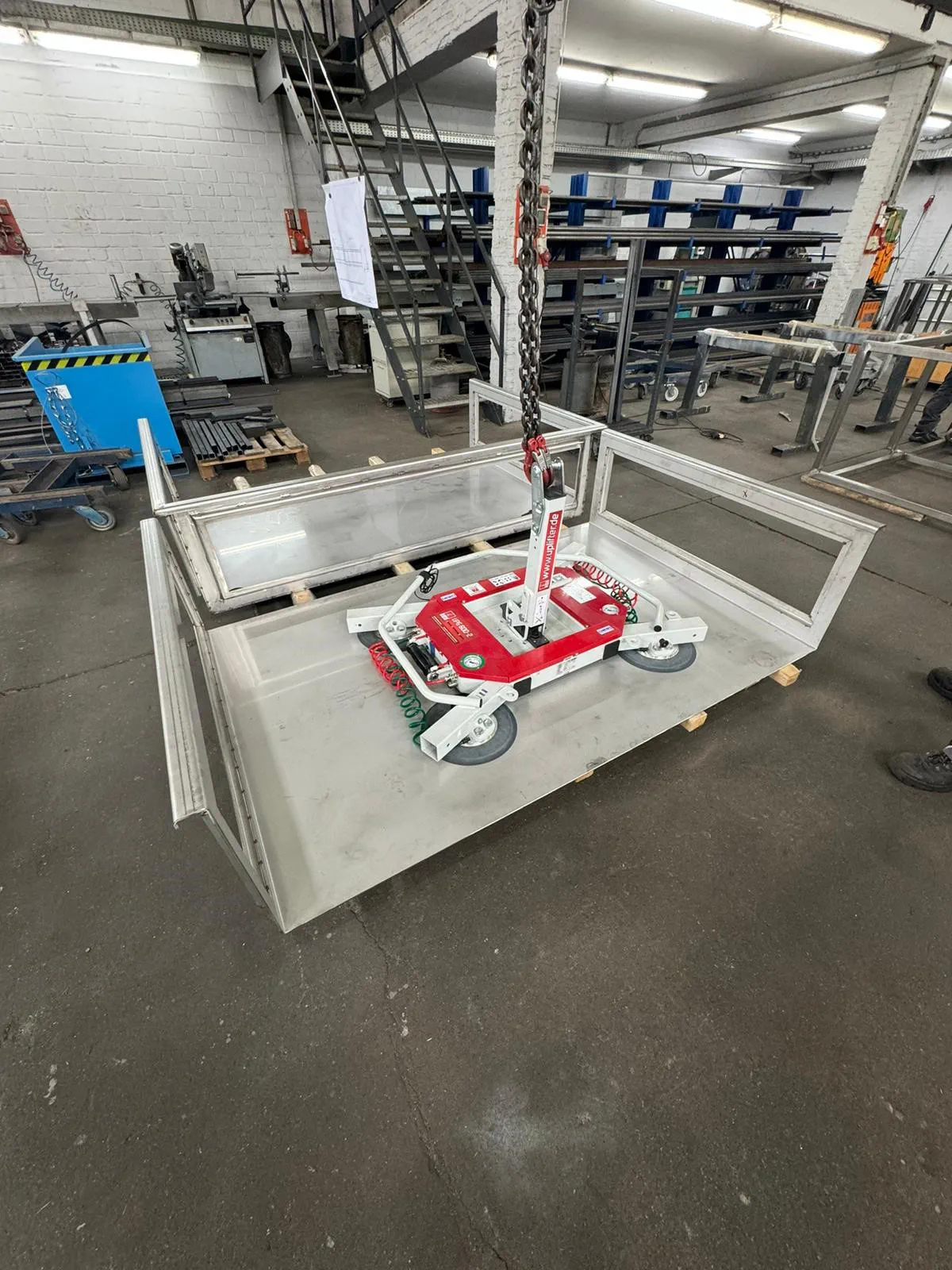

A modular flow tank for the University of Gothenburg allows researchers to gather important data and study the behaviour of salmon. On a surface area of almost 10 m², various flow set-ups can be constructed and accurate data collected thanks to a specially designed grid table and different flow inserts. The basic structure consists of three equal-sized elements made of powder-coated high-grade steel and connected by a flange system. Viewing panels made of 25-mm Plexiglas GS allow side views of the tank interior.

Watch project video on our Youtube chanel

Measurements [MM]
L 4150 x W 2100 x H 500
Volumne, approx.
4000 l
Location
University of Gothenburg, Sweden
